40X-400X Inverted Biological Microscope Designed for Observation and Cultivation for Cell Tissue
M13117 40X-400X Inverted Biological Microscope Designed for Observation and Cultivation for Cell Tissue. By using LWD infinity plan phase contrast objectives, it can easily realize phase contrast observation. Furthermore, it has Epi fluorescence illumination to choose.
Features:
- Oversize view field eyepiece, view field up to 22mm for comfortable observation.
- New research and new development.
- Koehler illumination with two options, 6V/30W and 5WLED
- Light distribution (both): 100 : 0 (100% for eyepiece), 80 : 20 (80% for trinocular head and 20% for eyepiece).
Long working distance condenser N.A. 0.30, Working distance:72mm
Working distance: 195mm (without condenser), available for extra high culture dish
Large size stage convenient for research, Size:240mm(X)× 210(Y)mm Mechanical stage available for 96 holes plate. Moving range:128mm(X)× 80(Y)mm
M13117B Inverted Fluorescence Microscope
Large diameter quintuple nosepiece can be installed more objectives, more convenient for using. Light distribution (both): 100:0 (100% for eyepiece); 80:20 (80% for trinocular head and 20% for eyepiece)
M13117A Inverted Biological Microscope Size(mm)

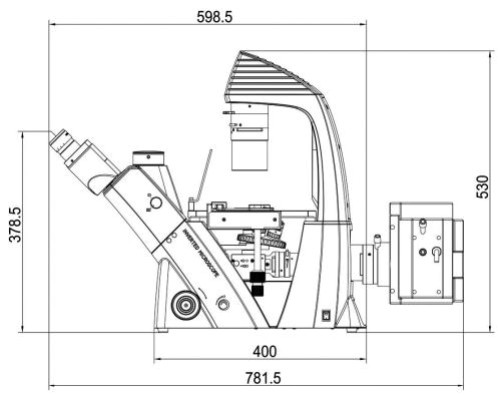

M13117B Inverted Fluorescence Microscope Size(mm)
M13117 Inverted Biological Microscope General Layout Diagram
M13117 Series Biological Microscope Configuration
| Items | Specification | M13117A | M13117B |
| Eyepiece | WF10×／22mm (adjustable) | ●● | ●● |
| LWD Infinity Plan Objectives | LPlanFL 4×／0.11, W.D.=12.1mm | ○ | ○ |
| LPlanFL 10×／0.25, W.D.=10.3mm | ● | ● |
| LPlanFL 20×／0.45, W.D.=5.8mm | ● | ● |
| LPlanFL 40×／0.65, W.D.=5.1mm | ● | ● |
| LWD Infinity Plan Phase Contrast Objectives | LPlanFL PHP 4×／0.10, W.D.=9.2mm | ○ | ○ |
| LPlanFL PHP 10×／0.25, W.D.=10.3mm | ○ | ○ |
| LPlanFL PHP 20×／0.45, W.D.=5.8mm | ● | ● |
| LPlanFL PHP 40×／0.65, W.D.=5.1mm | ○ | ○ |
| Annular Spot | 10×/20×/ 40× | ● | ● |
| 4× | ○ | ○ |
| Seidentopf Trinocular Head | Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0(100% for eyepiece) 80:20 (80% for trinocular head, and 20% for eyepiece) | ● | ● |
| Seidentopf Trinocular Head | Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head) | ○ | ○ |
| Nosepiece | Quintuple | ● | ● |
| Mechanical Stage | Stage size: X×Y: 210×241mm, Round slide size:Φ110mm, Attached mechanical stage (available for 96 holes plate, moving range X×Y:128×80mm.) | ● | ● |
| Culture Dish Holder | 65mm | ○ | ○ |
| 54mm | ● | ● |
| 35mm | ○ | ○ |
| blood cell counter | ○ | ○ |
| Condenser | Long working distance, Quickly detachable , N.A.0.3, Working distance: 72mm (with condenser), 195mm (without condenser). | ● | ● |
| Koehler Illumination | 6V/30W (input voltage:100V～240V) | ● | ● |
| 5WLED,input voltage:100V～240V | ○ | ○ |
| Filter | Blue | ● | ● |
| Green | ● | ● |
| Amber /Grey | ○ | ○ |
| C-mount | 1 X /0.5X /0.75X C-Mount (focus adjustable) | ○ | ○ |
| Epi Fluorescence Illumination | Epi fluorescence media unit , field diaphragm,center adjustable. | | ● |
| 100W mercury lamp ,5WLED(input voltage:100V～240V) | | ● |
| B, G, V, UV fluorescence filters can be chosen | | ● |
Note: ● means current configuration ○ means optional
Packing Size: 660mm×590mm×325mm
Gross Weight: 18 kgs
Net Weight: 13.5 kgs
